Locks are almost the first thing to get lost or broken, and they tend to be quite badly-made compared with the rest of your machine - if you can't get into that case please do not use a big screwdriver - you will only break something. Quite a lot of sewing machine cases can be opened with a small flat screwdriver to turn the lock; so try that, GENTLY, first. If the lock has a "keyhole" shape inside I have new keys which should do, or you might try a local antique dealer, they always have lots of odd keys
And NEVER, EVER carry the case by the handle, locked or not - the handle is to lift off the lid - otherwise you WILL break a toe... and the lid, and probably the machine....
All the locks have been oiled and work and now all are supplied with keys unless noted...
See also the CATCHES and LATCHES page
This page needed much work*, and I have started again from scratch, as the box was a total disgrace, nothing matched the numbers on the packets or the pictures, and I was in despair...
Locks at the top, keys below, oddments like escutcheon plates right at the bottom!
NOTE all the new photos are taken on a metric grid, any additional measurements are in inches. Just to keep you all on your proverbial toes... (And the lock plates are in millimetres, also for the toe thing, and to annoy everyone including me)
*I started this in April, finally finished on 25th October 2022
|
Keys
Lock and Catch Plates
Escutcheons
|
Locks |
Measurements like so - width of the fixing plate: width of the body: depth of the body, in inches |
Singer Locks |
CALO001 Singer early domed lid with square key; 2-7/8 x 1-1/2 x 1-1/4"; £13.50 with repro key
(Square keys are listed further down if you want or need an original, and if I have one left) |
CALO002 Singer later domed lid with slot key; 2-7/8 x 1-1/2 x 1-1/4"; £13.50 with repro key or suitable small screwdriver. Add £6.50 for an original key (if I have one) (Sorry, out of stock) |

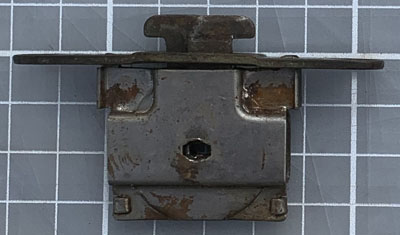

CALO003 Singer last domed lid with notched key; 2-7/8 x 1-1/2 x 1-3/8"; £13.50 with repro key or suitable small screwdriver. Add £7.50 for an original key (if I have one) (Out of stock, sorry) |
CALO005 Singer drawer with hook, slot key, shown open and closed; £5
Keys are extra for drawer locks, see below
CALO005a with blade, also £5 |

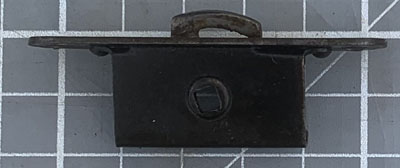

CALO004 Singer drawer with hook, square key, shown open and closed; £5
Keys are extra for drawer locks, see below |

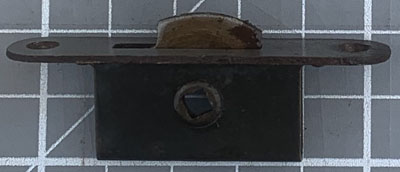

CALO004a With blade rather than hook; £5 |
Jones |
CALO006 Jones CS turn-lock, 1-3/4 x 1-1/4"; £9.50 with repro key (left) or add £6.50 for an original Jones key (sorry, all out of all of these at present) |
CALO021 Jones Treadle lid lock with repro key, (see left) eyelet, screws; (shown both sides), 2-3/8 x 1-1/2 x 1-1/2"; £13.50 |
German TypesThese have a hook and a locating pin coming from the lock. All have keys as shown |
CALO037 Seidel and Naumann with original key, ; £22.50 |
CALO012 With plates, catches, original key, 3 x 2 x 1-3/4"; £20 |
CALO008 Davis VS with keyhole liner, catch, original key, 3 x 2 x 1-3/4"; £19.50 |

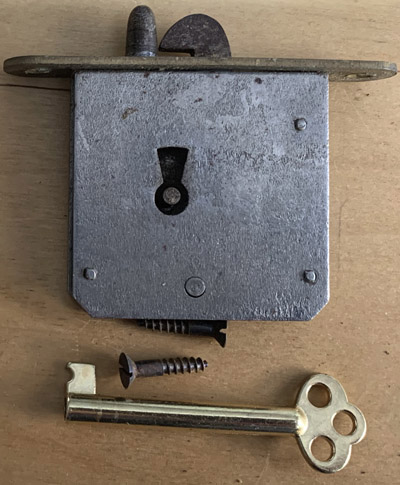

CALO034, repro key; £17 |
CALO014 With catches, plates, escutcheon, screws, original key, and everything... 3 x 2 x 2"; £25 |
CALO016 Superba (12 clone) with plates, original key, 2-3/4 x 1-5/8 x 1-3/8"; £20 |
CALO016 Another view...
CALO015 With original key, 3 x 1-1/2 x 1-1/2"; £17 |
Spring Catch TypesThese have a bar which comes out and sprung spikes which open as the lock closes. All have keys |
|
|
|
|
CALO010 with key and catches, 2-7/8 x 1-3/4 x 1-1/2"; £15 |

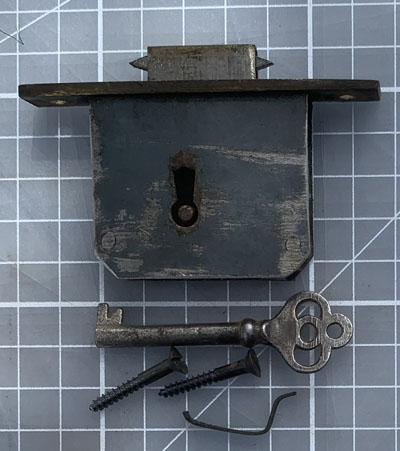

CALO027, with pretty key, 3-1/8 x 2 x 1-5/8"; £18 |
CALO031 Faudels with lots of Stuff, repro key; £22 |
Other Lock TypesAs described with each one. All have keys |
|
|
|
|
CALO025 From treadle lid (probably Singer), with catches, screws, repro square key, 2-1/2 x 1-1/2 x 1-1/2"; £16.50 |

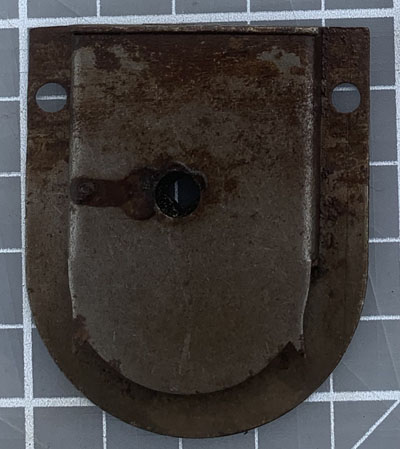

CALO020 Wheeler and Wilson 12 with oddments and repro square key, 1-3/4 x 1-1/4 x 2-1/8"; £22 |
CALO020 Other side |
CALO022 Latches pair, with bits and two keys, 2-1/4 x 1-1/4"; £18.50 |
CALO024 From Pfaff treadle with escutcheon and pretty key; £16 |
CALO026 From Treadle lid, with catches and original triangular key, 2-7/8 x 1-7/8 x 1-3/16"; £18.50 |
CALO026 Lock open |

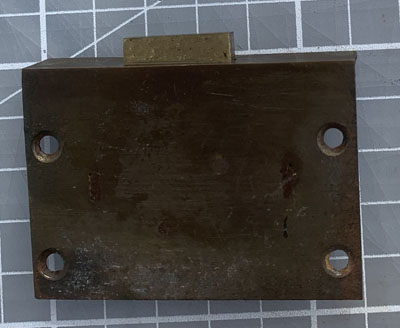

CALO028 Box lock with keyhole surround and good key, 2-3/8 x 1-3/8 x 1-1/2"; £15 |
CALO028 Other side |
|
Lengths in inches |
New Keys |
CALOK003a, round top (Gold) £3.50 |
CALOK004a Fancy top (Black) £4
CALOK004b Fancy top (Gold) £4 |
|
|
|
|
CALOK101 Hand-made square keys, shapes vary; £3 each
Also CALOK101a, triangular ended...; £3 each
You can make these for yourself with a disused deadlock door key, a hacksaw, and a file. Go on, have a go! |
Singer Keys |

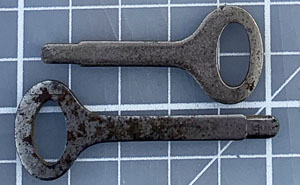

CALOK001 Singer flat 87363 for mid-period domed cases; £9.50 (Out of stock, sorry)
CALOK110 Opens both types of Singer cases; £12.50 |
CALOK002 Singer notched 96507 for the later domed cases; £10 (Serious shortage of all types at present, sorry; back to the small flat screwdrivers folks!)
Please note that the locks for both these types open will work just fine with a small flat screwdriver.. |
Square-ended Keys - Open Singer, Jones, Vesta etc. |

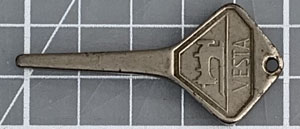

CALOK068 Vesta; £10 |

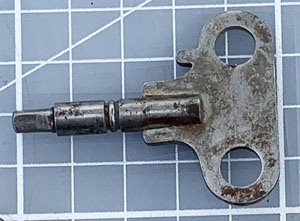

CALOK027, might be a clock key; £10 |
CALOK101 Hand-made square keys, shapes vary; £3 each
You can make these for yourself with a disused deadlock door key, a hacksaw, and a file. Go on, have a go! |
Flag (Skeleton) KeysLengths in inches |
CALOK016, 1-5/8", complex; £9.50 |
CALOK008 Brass, 1-1/4"; £5 |

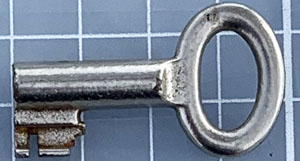

CALOK010 Chunky 1-1/2", 2 available; £5 |

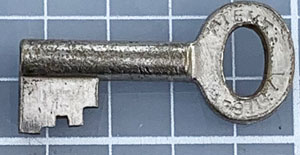

CALOK011 Chunky, "Delbro brand", 1-3/4"; £5 |
CALOK009, 1-3/8"; £5 |

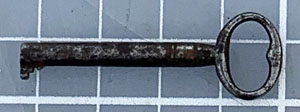

CALOK022 Rather worn, 1-5/8"; £6 |
CALOK019 1-1/4"; £3.50 |
CALOK007, 1-1/4", 2 available; £3.50 each |
CALOK037 "Squire forged steel", 1-1/2"; £3.50 |

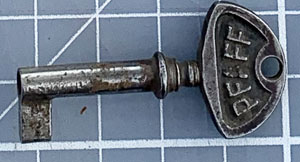

CALOK039 Pfaff, 1-3/4"; £10 |
CALOK038, 1 inch, complex; £5 |
CALOK042 With dolphins, fanciest yet, 2-3/4"; £10 |
CALOK035 1-5/16"; £3.50 |
CALOK036 1-1/8"; £3 |
CALOK041 Chunky “Squire forged steel", 1-5/8"; £3.50 |

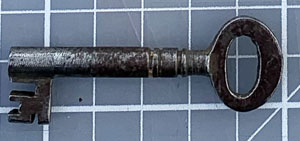

CALOK047 2-1/4"; £9.50 |
CALOK020 1-1/8"; £3.50 |

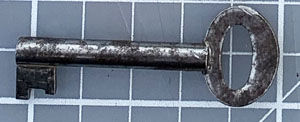

CALOK049 2-1/8"; £8.50 |

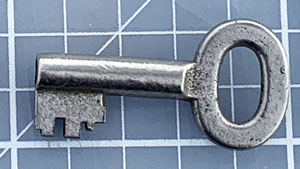

CALOK050 Chunky 1-3/4"; £3.50 |
CALOK013 1-1/4"; £3 |

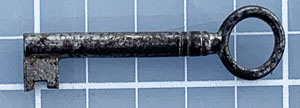

CALOK051 2"; £8.50 |
CALOK052 1-3/4"; £5 |
CALOK021 1-1/8; £3 |

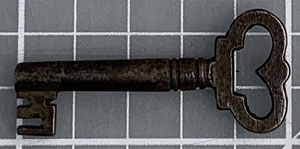

CALOK053 Complex, 2"; £8.50 |
CALOK034 1-1/4" 2 available; £3 each |
CALOK055, 2-1/8"; £8.50 |
CALOK056, 2-1/4"; £8.50 |
CALOK017, Chunky "10" "Union", 1-3/8"; £3.50 |
CALOK057, 3-1/4"; £9.50 |
CALOK059, 2-3/8"; £8.50 |
CALOK018, Chunky "20", 1-3/8"; £3.50 |

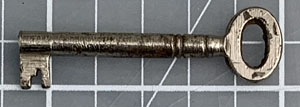

CALOK060, 2-3/16"; £8.50 |

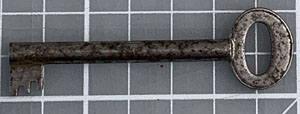

CALOK061, 2-5/8"; £8.50 |
CALOK012, 1-1/4"; £3 |

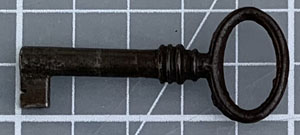

CALOK062, 1-7/8"; £9.50 |
CALOK063, 2-5/8"; £8.50 |
CALOK014, Complex, 1-3/8"; £4 |

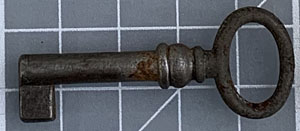

CALOK066, 1-3/4"; £8.50 |
CALOK088, "Arbro Furniture", 2-1/4"; £7.50 |
CALOK015, 1-1/4"; £3 |
CALOK111 With "S", 2-1/2"; £8.50 |
Cheney and Other Case and Catch Keys
Keys |
CALOK069 Cheney 14, 1-1/4"; £2.50 |
CALOK071 Cheney 10, 1-1/4", late Featherweight cases; £2.50 |
CALOK072 Cheney 30 Type 1 Flat; £2.50 |
CALOK073 Cheney 34 Flat, 1-1/2"; £2.50 |
CALOK074 Cheney 33 Flat, 1-1/4"; £2.50 |
CALOK075 Cheney 36 Flat, 1-1/4"; £2.50 |
CALOK076 Cheney 37 Flat, 1-1/4"; £2.50 |
CALOK077 Cheney 30 Flat Type 2, 1-1/2"; £2.50 |
CALOK078 Cheney 38 Flat, 1-1/4"; £2.50 |
CALOK079 Cheney 40 Flat, 1-5/8"; £2.50 |
CALOK080 Cheney 50 Flat, 1-3/8"; £2.50 |
CALOK089 Cheney for Featherweight, 4 Pat 481400, shaped, 1-1/4"; £4 |
CALOK081 Cheney for Early Featherweight, 4 Pat 481400, shaped, 1-1/4"; £4 |
CALOK082 Husqvarna case, 1-1/4"; £2.50 |
CALOK084 Flat 1-3/8"; £1.50 |
CALOK086 Flat, 1-1/2"; £1.50 |
CALOK087 Small, flat, notched, 1-1/4"; £1.50 |
CALOK107 Flat, 1-3/8"; £1.50 |
CALOK092 SMS, Cheney 1 "Made in England", 1-1/8"; £2.50 |
CALOK093 Flat, 1-1/8"; £1.50 |
CALOK099 Cheney flat; £2.50 |
CALOK100, 1-1/4"; £1.50 |
CALOK102, 1-3/8"; £1.50 |
CALOK070 Cheney 11 Shaped; £2.50 |
CALOK113 "S" + "4", 1-5/8"; £2.50 |
CALOK096, 1-3/8"; £1.50 |
CALOK094 Bernina case "318"; £1.50 |
CALOK103, 1-3/8"; £1.50 |
CALOK104 "SMS"; £1.50 |
CALOK105, 1-1/4"; £1.50 |
CALOK108, 1-3/8"; £1.50 |
| Ask if you need screws with these, please |
CALOPSET001 From Singer notch-key box locks; £5 |

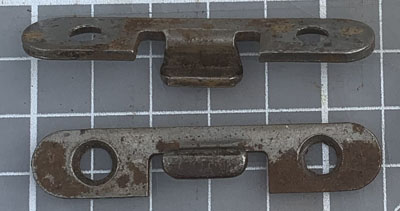

CALOP010 Singer early lid rear end; £2

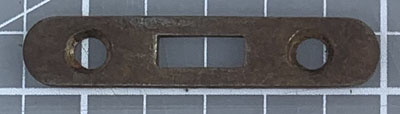

CALOP001 Singer Box base flat; £2 |

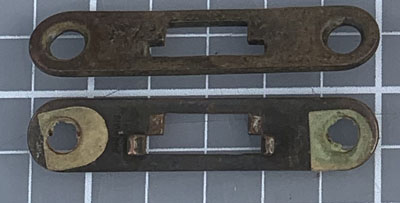

CALOP003 Singer with pips under; £2 |
CALOP002 Singer cranked 96896, needed for certain types of extension tables; £2.50 |

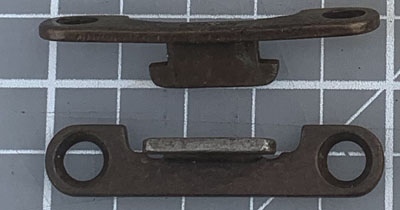

CALOP004 Singer with lug, from box top; £2 |

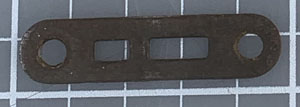

CALOP005 Singer for drawer lock with blade (see top of page); £2 |

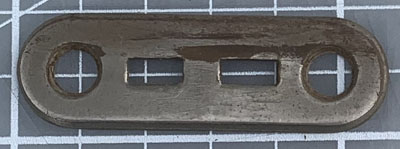

CALOP007 Jones for turn lock, older, wide, 58 x 14 mm; £2 |

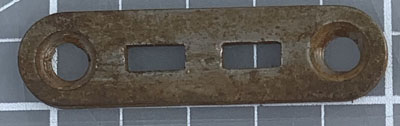

CALOP007a Jones for turn lock later, narrow, 54 x 14 mm; £2 |

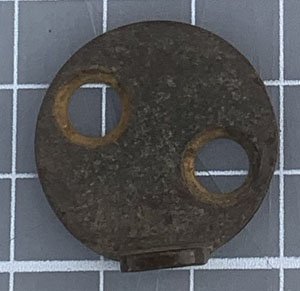

CALOP007b Jones back end lid, 13 mm; £2 |

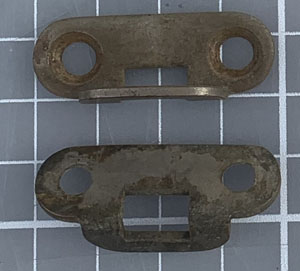

CALOP007c Jones back end base early, 39 x 13 mm; £2 |
CALOP007d Jones back end base later, 39 x 15 mm; £2 |

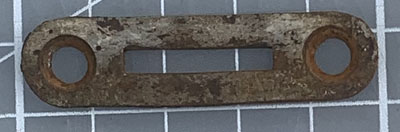

CALOP009 Frister Rossman TS, 50 x 6 mm, 20 mm slot; £2 |

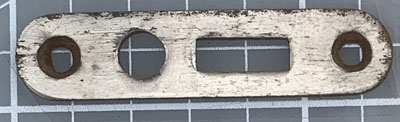

CALOP011a Naumann VS Lock plate, 65 x 15 mm; £2.50
CALOP011b Naumann VS Base rear end, 60 x 20 mm; £2 |

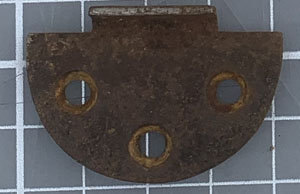

CALOP011c Naumann VS Rear end lid, 40 x 25 mm; £2.50 (Sorry, out of stock) |
CALOP012, Lock plate, 58 x 12 mm, slot 23 mm; £1.50 |
CALOP012a, Lock plate, 58 x 12 mm, slot 18 mm; £1.50 |

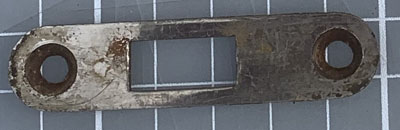

CALOP013 Lock plate, 62 x 15 mm, slot 18 mm; £1.50

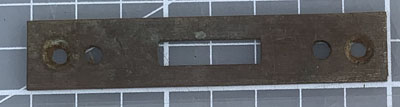

CALOP023 Lock plate, 80 x 13 mm; £2 |
CALOP015 Frister Rossmann VS Lock plate, 72 x 8 mm, slot 20 mm; £2 |
CALOP016 Lock plate, 74 x 11 mm; £2 |
CALOP018 Lock plate, 59 x 13 mm; £2 |
CALOP025 German, 3 screw holes, 82 x 7 mm; £2 |

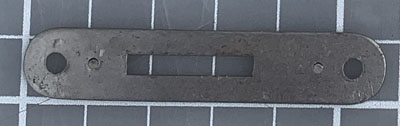

CALOP019 Lock plate, 56 x 11 mm, 19 mm slot; £2 |

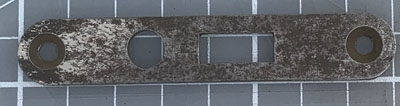

CALOP020 German lock plate, 80 x 7 mm; £2 |
CALOP021 Lock plate, 74 x 11 mm, 7 mm slot; £2 |

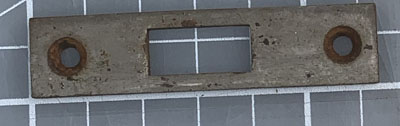

CALOP022 Lock plate, 62 x 12.5 mm, 19mm slot; £2 |

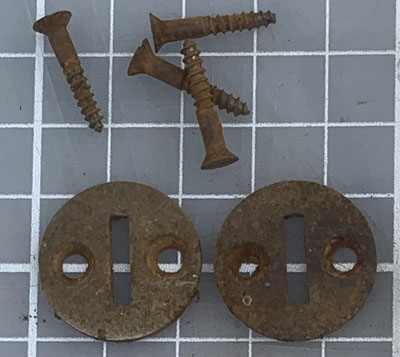

CALOP024 Back end base from small Vesta, 24mm; £2.50 pair |
CALOP008 Round plates for Vesta, 28 mm; £3 pair |
|
|
|
|
|
CALOODD003 Vesta Art deco, 2-1/2 x 7/8 inch; £10 |

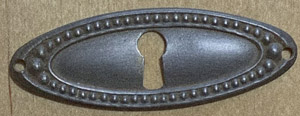

CALODD007 Oval, 2.4 x 0.85 inches; £8.50 |
CALODD008 Art Deco, 2-1/4 x 1 inch; £10 |
CALOODD005, 2-3/8 x 7/8 inch; £5 |
CALOODD004 "R", 1-3/8 x 1-3/4 inches; £10 |
